About SDF Mesh Library

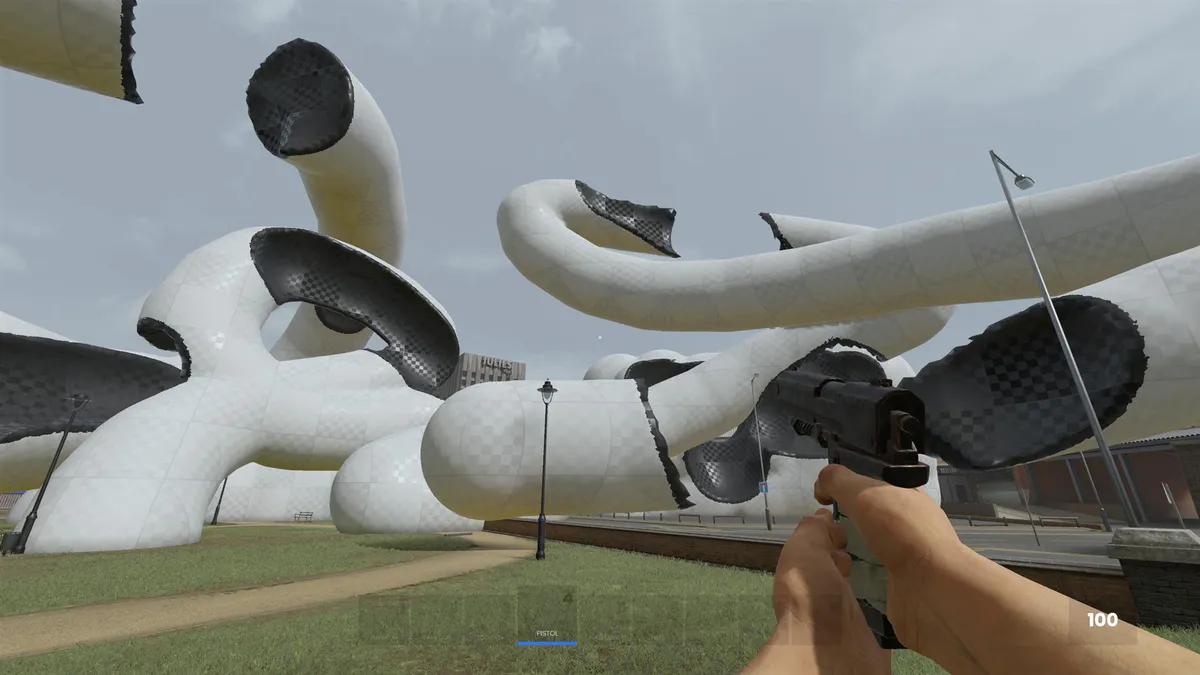

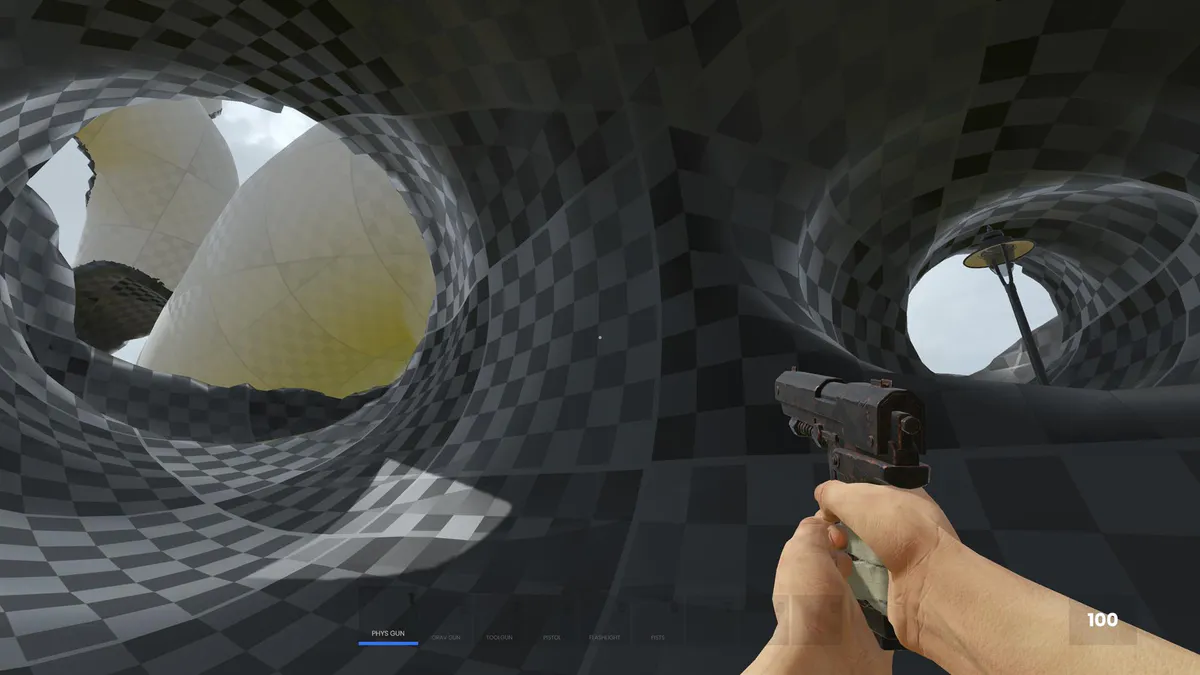

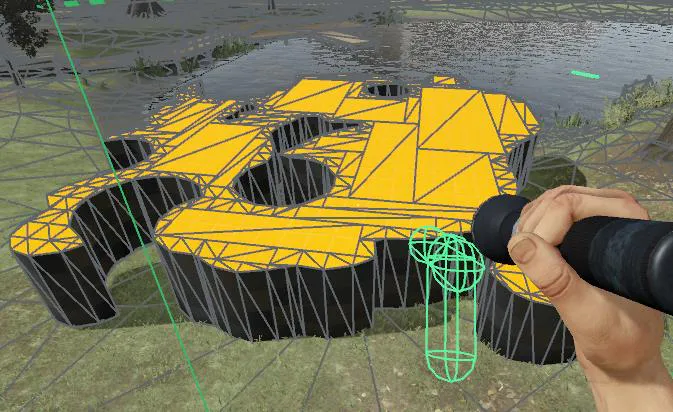

Allows you to define a 2D / 3D field of signed distances to a virtual surface, perform operations with primitive shapes, and then generate a 3D mesh of the surface in real-time.
Create a world
using Sandbox.Sdf;
// ...
var sdfWorld = new Sdf2DWorld
{
// Rotate so that Y is up
LocalRotation = Rotation.FromRoll( 90f )
};
In this example we've rotated it by 90 degrees, so that the Y axis when doing 2D operations becomes the Z (up) axis in world space.

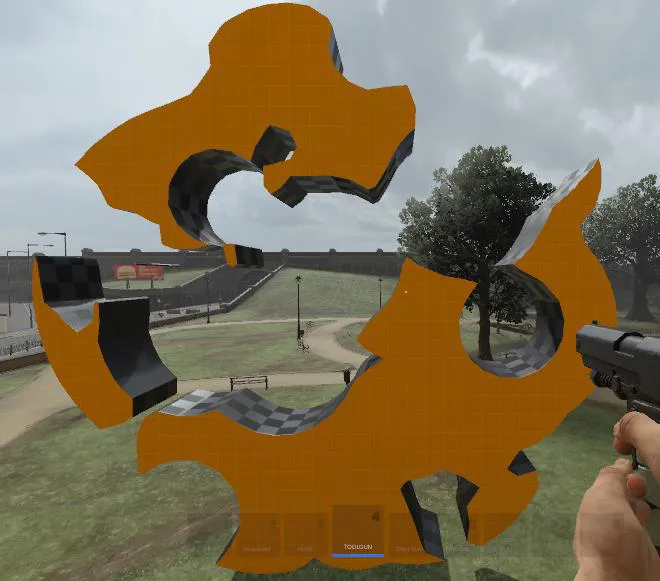

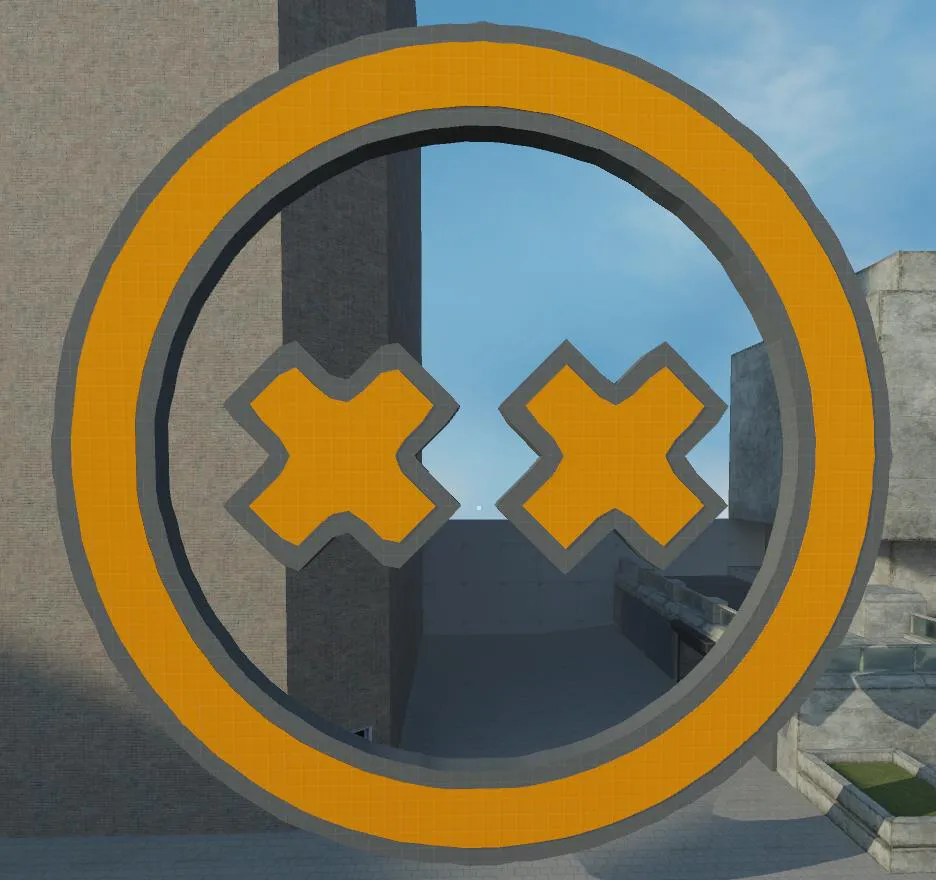

Draw some shapes
Still in server-side code, you can modify the SDF world like this:
// Shape that we want to add
var circle = new CircleSdf( new Vector2( localPos.x, localPos.y ), radius );
// Load the material to use
var material = ResourceLibrary.Get<Sdf2DLayer>( "layers/sdf2d/checkerboard.sdflayer" );
// Draw the circle!
sdfWorld.Add( circle, material );
// Move the circle to the right, then subtract it!
sdfWorld.Subtract( circle.Translate( new Vector2( 32f, 0f ) ), baseMat );
