SubTerrain Tool
What it does
Sculpt Tools
- Raise / Lower — paint height up or down. Hold Ctrl to invert.
- Smooth — blend neighboring heights for softer terrain.
- Flatten — level to the height under the cursor (locks to a plane while dragging).

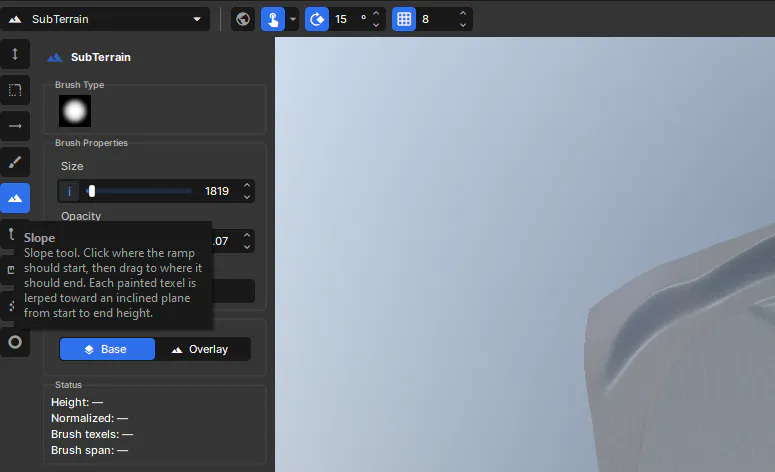

- Slope — click start, drag to end; grades from start height to end height along the line.

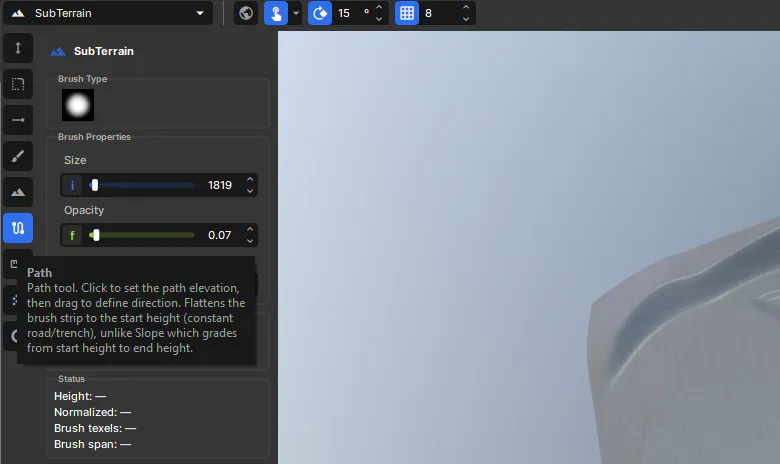

- Path — click start, drag direction; keeps a constant elevation strip (road/trench style).

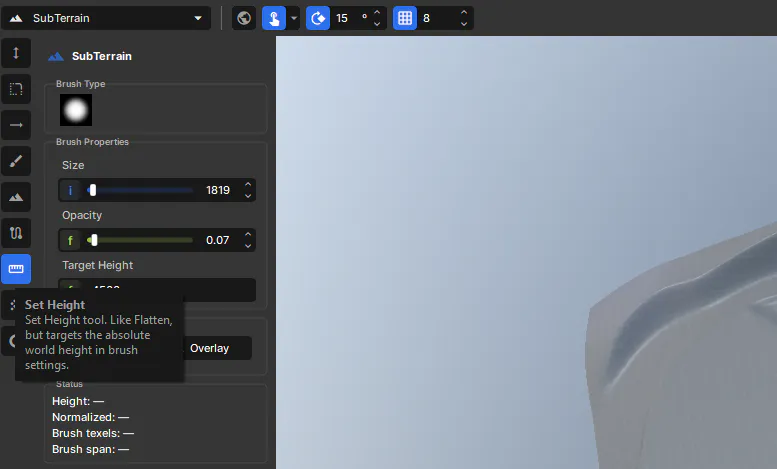

- Set Height — flatten to an absolute world height from brush settings.
- Noise — add procedural variation. Hold Ctrl to invert.
- Hole — remove surface and collision in the brush area (per-texel punch-through, not enclosed volumes).
Brush & preview
- Large brushes — size up to 32,000 units
- Brush preview on the terrain surface, matching the built-in terrain tool.

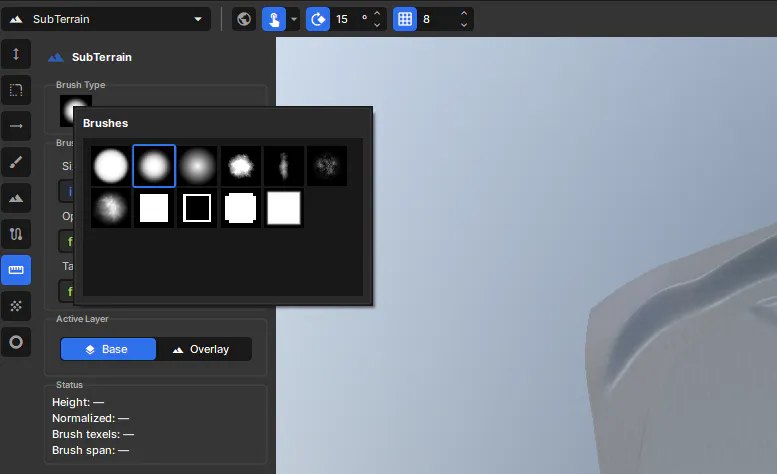

- Square masks included (hard, soft, rounded, outline); also uses the shared engine brush list.
- Undo/redo on height and control-map edits.
Status
- Live cursor readout: world Z, normalized height, brush texel footprint, and brush world span.
- Shows — when the cursor is not over terrain.
How to use it
- Add the library.
- Open a scene with a Terrain component and select it.
- Activate SubTerrain from the scene tools.
- Pick a sub-tool from the toolbar or press 1–9.
- Choose a brush mask and adjust Size / Opacity in the sidebar.
- Left-click and drag on the terrain to sculpt or paint. Hold Ctrl on supported modes to invert.
Keyboard shortcuts
| Key | Tool |
|-----|------|
| 1 | Raise / Lower |
| 2 | Smooth |
| 3 | Flatten |
| 4 | Paint Texture |
| 5 | Slope |
| 6 | Path |
| 7 | Set Height |
| 8 | Noise |
| 9 | Hole |
Credits
Made by the SubZero Studios team.
